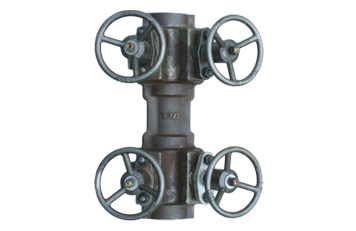

Steam distribution manifolds facilitate the distribution of steam to various user points, through forged units with inbuilt Piston valves. Similarly condensate from these points can be collected through the condensate collection manifolds, consisting of trap with associated isolation and by-pass piston valves.

Available in basic configurations of 4 stations/tracing lines and multiples of 4 stations i.e.8, 12 and 16 tracing lines. A standard steam distribution manifold would consist of a manifold with strainer, isolation piston valve at the inlet at the top and a Trap valve station at the bottom drain point.

A standard condensate collection manifold would consist of a manifold with intelligent trap valve stations at the individual tracing lines.
