Gate Valve

Gate Valve

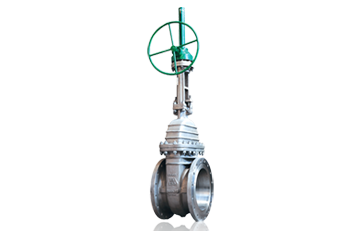

A Gate Valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid.

Design Features:

Designed for high pressure and high temperature applications, for a wide range of fluids except slurries and viscous fluids. These Industrial valves are generally used in the wide open or closed position, are not recommended for throttling service because throttling causes disc chattering and vibration which is likely to erode the seating surface and cause leakage.

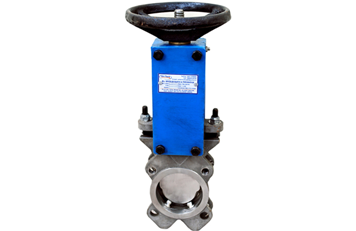

Knife Gate Valve:

  • Type: Wafer, Full Lug, Uni-directional Knife Gate Valve - Rising Stem Handwheel.
  • Typical Applications: Medium & Heavy duty applications
  • Sizes available: 50-500mm (2" to 20")
  • Gate: 304, 316 st. steel
  • Pressure rating Cast iron body: CWP 10 bar, 50-300mm (2" - 12") size; lower on higher sizes
